Edilians Beauvoise Graphite

Edilians Beauvoise Graphite

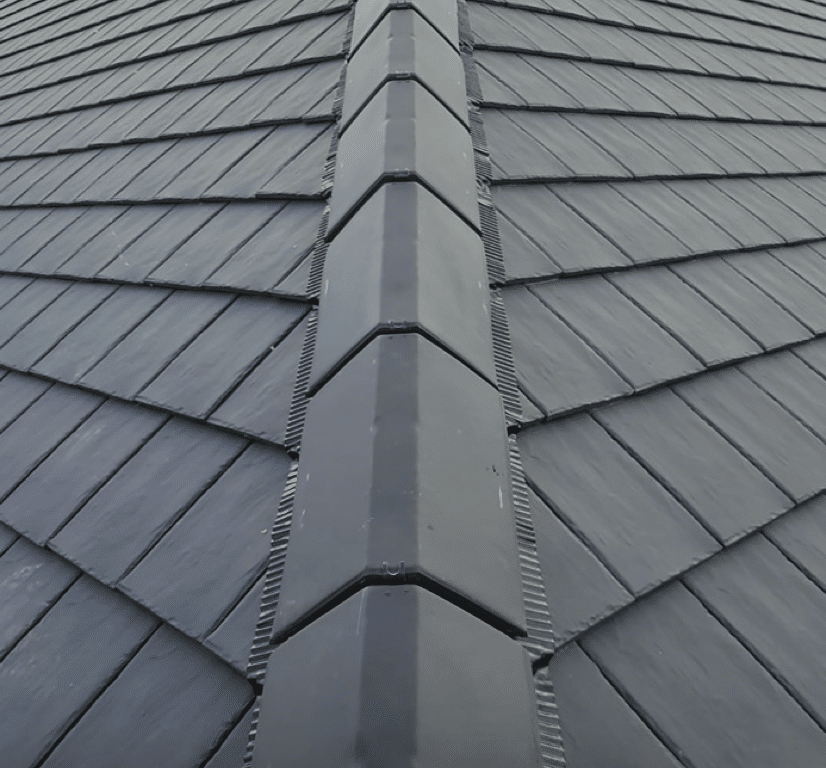

The Beauvoise Graphite is a small, flat interlocking clay slate tile produced at St. Germer in the Beauvais region of France.
The Edilians Huguenot BEAUVOISE GRAPHITE clay slate provides an exciting natural clay option, offering a durable high-performance roof covering, saving up to 30% on material costs alone when compared with natural slate. This tile has a slim line edge and has a minimum 22.5° roof pitch.
Beauvoise Graphite brochure
  • Beautiful traditional colours
  • Low 30° roof pitch guarantee
  • Unique anti-capillary channels
  • Comprehensive 30 year guarantee
  • Pre-mixed blend options
  • Fast Delivery

Technical Data

Quantity per pallet:
480 tiles
Coverage
20.5 per m2 @ 245mm gauge
Batten Gauge:
245mm
Overall Length:
322mm
Overall Width:

235mm

Cover Width:
200mm
Minimum Headlap:
77mm
Unit Weight:
1.9kg
Weight Per m2:
39.0kg
Minimum Roof Pitch:
22.5°
Batten Coverage:
4.08 l/m @245mm
Batten Sizes:
38 x 25mm rafter centres 450mm

50 x 25mm rafter centres 600mm
Nail Size:
50 x 3.35mm
